Mock-ups eliminate miscommunication and reduce install failure risk

Mock-ups are great tools for managing customers’ expectations, which in turn can reduce risk and lead to successful installation. Today, we’ll define what a mock-up is, and explain the many advantages of using them.

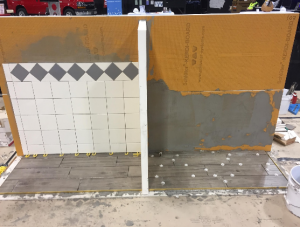

Mock-up module.

A mock-up can be either a partial or full-size structural model using exact construction materials, specifications and techniques. They allow all those involved to evaluate an actual three-dimensional representation of a project. They also allow us to experience at full scale what could only be hinted at with drawings or small architectural models. Mock-ups allow us to access the functionality, aesthetic and quality of the actual products down to the smallest details. If the old saying “A picture is worth a thousand words” is true, a mock-up must be worth a considerable amount more.

Oftentimes, mock-ups are required in commercial projects. It may seem that the additional expense associated with doing a mock-up is unnecessary but, in the end, it allows the team to foresee problems and solve them before they develop on a larger scale.

Jobsite conditions, shade variation and grout joints

Mock-ups get you involved early and allow you to access jobsite conditions such as: does the site have power, water, correct temperature, and lighting? It gives us the opportunity to establish the needs for a successful installation. With tiles transitioning to larger and larger sizes, mock-ups help installers set a standard for how flat surfaces must be to install tile. If we run into a problem with poorly-done concrete or framing, we can explain our needs for flat surfaces before they pour the next series of slabs, or frame the next group of rooms.

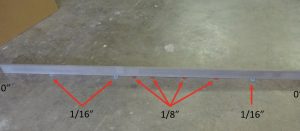

Mock-ups help installers set a standard for how flat surfaces must be to install tile.

It seems we are continually pushed by faster and more demanding schedules to complete projects. Timing the installation of a mock-up can be extremely beneficial in determining the amount of total time a project will take, as well as the amount of manpower necessary to reach a desired deadline.

Many of us have probably had issues with showroom samples not actually matching the delivered material, especially with stone. Sometimes, a stone sample could have been quarried months or possibly years before the actual stone is selected and ordered. A mock-up shows you the actual current material appearance. Also, when some tiles have highly varied shading, it’s difficult to appreciate the overall look apart from an on-site mock-up with the actual material. Our industry has Aesthetic Classifications for shade variations that range from V0 to V4. The V0 are the most uniform in shade, while the V3 and V4 are the most varied. When using the more highly varied tiles it takes a larger area of tile to truly appreciate the overall appearance.

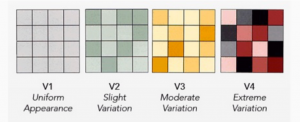

Shade variation courtesy of Architectural Ceramics.

The last few years, the trend has been for smaller and smaller grout joints. It seems everyone loves tile but hates grout. Mock-ups can set an agreed-upon grout joint size. Our industry addresses minimum grout joint size. It states that we should never have a grout joint less than 1/16˝. It also explains that a grout joint should not be any smaller than three times the facial variation of the tile itself. Normally with a calibrated tile that would be around 3/16˝, and with rectified tile it would be 1/8˝. Most of our customers have difficulty visualizing what a 3/16˝ grout joint looks like. A mock-up eliminates that problem and allows the customer to better communicate their desires.

Outsmarting lippage before it happens

Plank and other rectangular shape tiles have grown dramatically in popularity. When tiles are manufactured, they are fired in a kiln. This process can warp the tile or make them bow. When plank or rectangular shape tile are set in an offset or brick pattern, the warpage in those tiles can create lippage in an installation. Lippage is basically when two tiles don’t meet on the same plane. Our industry has addressed this situation and says we should have no more than a 33% offset with tiles over 18˝ in length. It goes on to say if a stagger of more than 33% is called for, a mock-up should be done and approved.

One of the many benefits of being a member of the NTCA is technical support. One of the most prevalent calls we receive is about wash wall lighting. The design community has embraced this lighting that is located in the ceiling close to the wall and casts light down the wall and creates an undesirable shadowing effect. The lighting reveals inconsistencies in the wall, tile, and the work. In a large commercial project where this type of lighting is used, a mock-up can be a great asset. Finding out early the effects that light will have on the installation can save a lot of headaches and money. Moving the lights out from the wall can make a huge difference. Discovering this information early from a mock-up makes the process quicker, easier, and cheaper.

Setting expectations with your mock-ups

One thing to consider when doing your mock-up is to be mindful of who you are selecting for that installation and to create the mock-up. If you have a large crew with several installers, there is a tendency to pick your best people to do your mock-up. Remember, this is an example of what the owner will expect throughout the project. Inevitably, we have different employees that work at different speeds with different skill sets. It would be best to pick someone of average skill and speed for your group. This will give a more realistic expectation of what you can deliver. It’s said that it’s better to undersell and over deliver, than oversell and under deliver.

Once the mock-up is complete, communicate potential problems, and get a formal acceptance of the installation for the standard on the remainder of the project.

In conclusion, I hope you understand how mock-ups can:

Allow you to evaluate environmental conditions on the jobsite

  • Access substrate flatness
  • Define roles and responsibilities of each trade
  • Give a good indication of the time it will take to complete a project
  • Allow for evaluation of actual tile and grout color and shading
  • Set an agreed upon tile pattern and grout joint size
  • Help eliminate issues with critical lighting
  • Manage customers’ expectations and reduce risk.
