Sky-high office building undergoes dramatic front lobby makeover

TileLetter August CoverAt 18 stories high, Atlanta’s 7000 Central Park office tower occupies a prominent position in the city’s central perimeter skyline.

To reposition the tower as a top-tier office building, former building owner CBRE Global Investors revealed ambitious renovation plans in June 2017 for the 30-year old tower. The plans included a front lobby renovation, a full-service and high-tech fitness center, a collaborative co-working space and conference center, an expanded café area, a meeting space and a trendy outdoor “living room” to provide a gathering space for tenants to socialize.

With architect tvsdesign leading the way on the front lobby design, which included 2,000 sq. ft. (approximately 186 sq. m.) of large-format gauged porcelain panels climbing 30 feet (9 meters) up the walls, general contractor Hitt Contracting Inc. enlisted the help of installing contractor David Allen Company to get the job done. With green and sustainable construction currently an industry wide practice, NTCA Five-Star Contractor David Allen Company chose to utilize products that not only benefit the environment, but are top quality and aesthetically enhanced.

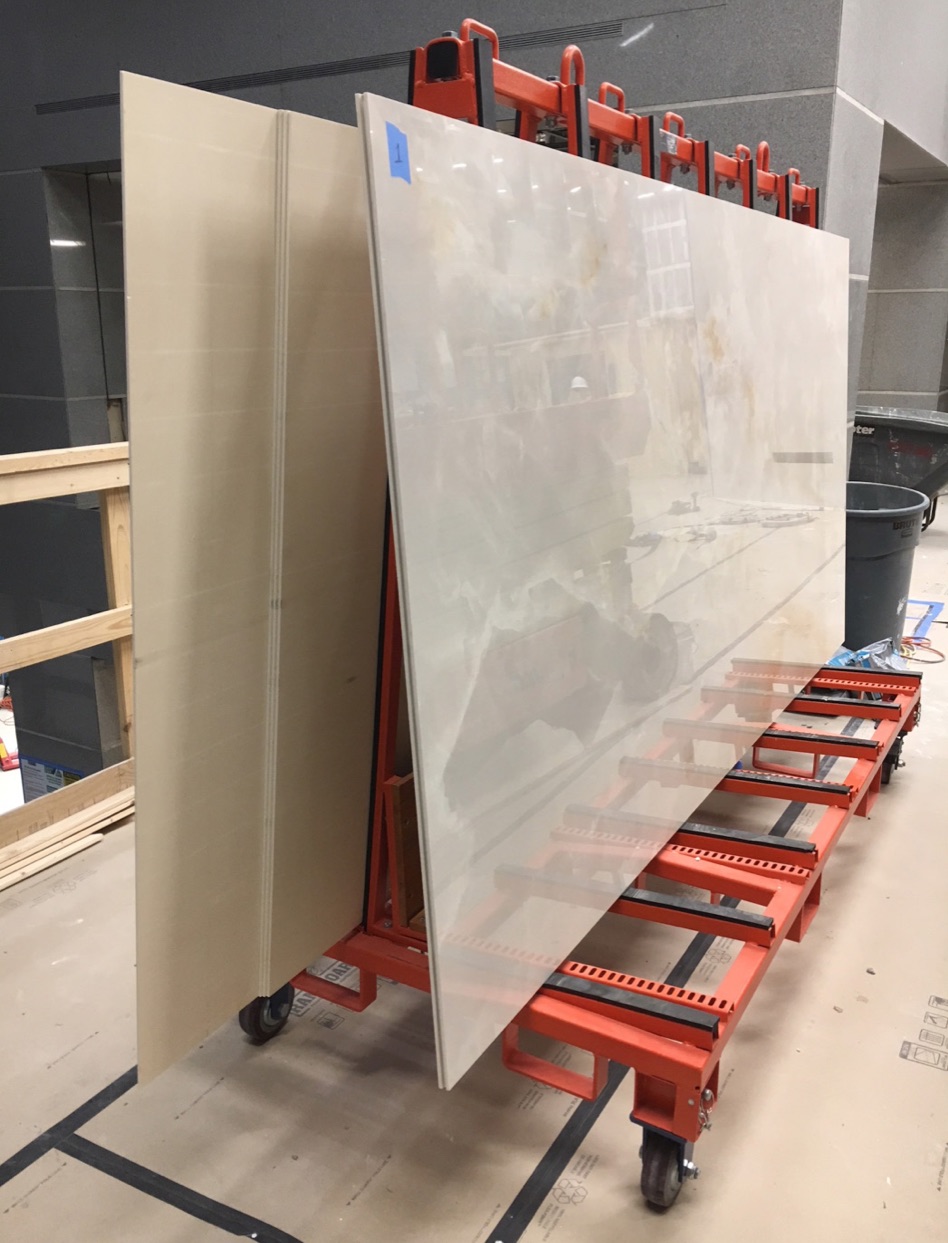

Close-up of the 5’x10' panels David Allen Company extended 30’ high on the walls.

Close-up of the 5’x10′ panels David Allen Company extended 30’ high on the walls.

“Immediately when we landed 7000 Central Park, we decided to use LATICRETE® products for the installations,” said David Allen Company Project Manager Eric Knight. “We’ve worked with LATICRETE for years and can always rely on their quality of product and high-end customer service. The products we used were instrumental in making sure the large-and-heavy gauged porcelain panels specified for the walls of the lobby would hold up.”

The challenges

Defying gravity: Not only did the large-format panels extend 30 feet (9 meters) up the walls, the enormous panels themselves were 5 feet (1.5 meters) by 10 feet (3 meters) in size. To make this installation possible, David Allen Company needed the specified LATICRETE products to deliver superb bond strength.

Installation interference: During the renovation process, 7000 Central Park remained open for tenants to conduct business, requiring David Allen Company to work during the night. Products used needed to be formulated with fast return-to-service properties to be able to withstand the high traffic of the office building within hours, rather than days, for public use.

After installing floor tiles, David Allen Company prepped the walls for the large-format gauged panel installation.

After installing floor tiles, David Allen Company prepped the walls for the large-format gauged panel installation.

A LATICRETE solution

To adhere the large-format gauged porcelain panels to the wall in the front lobby, David Allen Company chose 257 TITANIUM™. Selected for its strong bond and ease of use to work out air pockets, 257 TITANIUM exceeds ANSI A118.15, the industry’s highest performance standard for a cementitious-based adhesive mortar, providing durable, worry-free installations. 257 TITANIUM is also silica sand-free, which both reduces exposure to respirable silica and contributes to the easy-to-spread creamy consistency. For added security to ensure the installation would cure in time, 257 TITANIUM utilizes LATICRETE HYDROMATIC CURE CHEMISTRY™ that accelerates the hydration process to rapidly consume water in the system – allowing the material to cure in a predictable manner and providing peace of mind for David Allen Company.

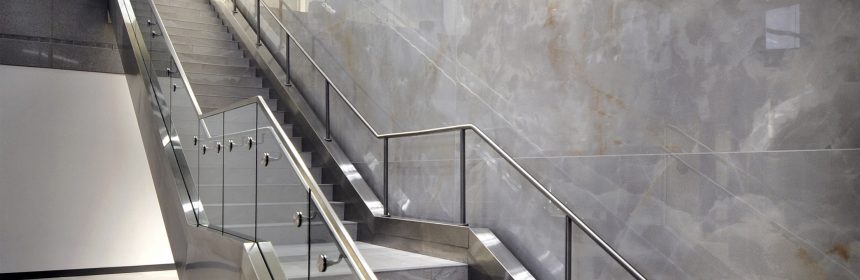

The steel stairs used LATAPOXY® 300 Adhesive, a chemical-resistant epoxy adhesive that is easily spread and cleaned with water while fresh, and tenaciously bonds to challenging substrate types. The floors utilized 4-XLT, a multi-use, polymer-fortified adhesive mortar. 4-XLT boasts a smooth and creamy consistency, making tile installation applications of this product faster and easier.

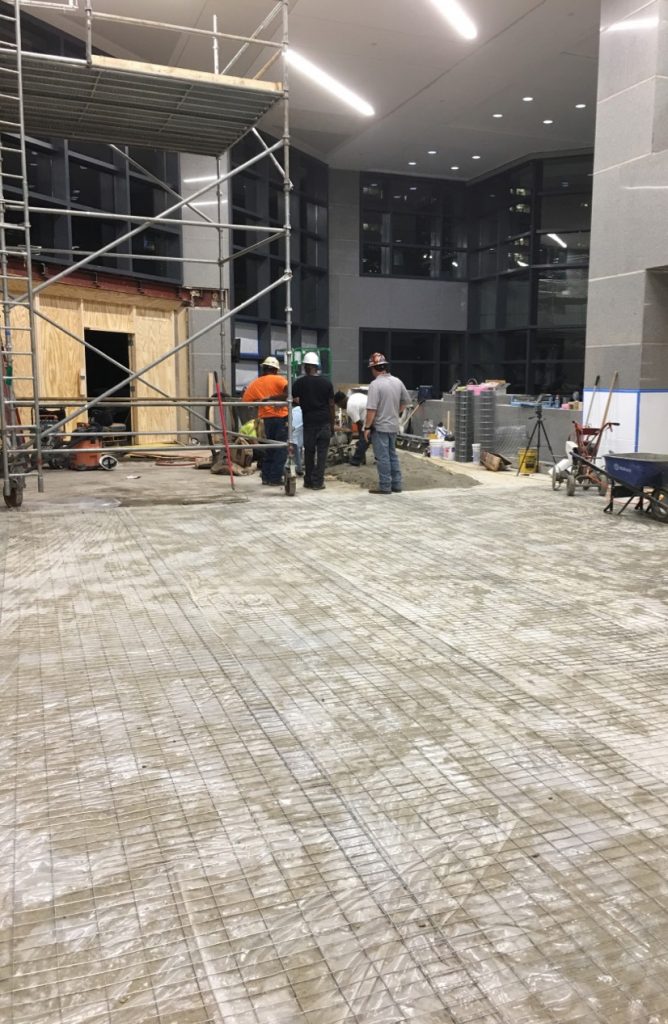

Prepping the floors in the lobby for installation.

Prepping the floors in the lobby for installation.

Customer-favorite PERMACOLOR® Select was used to grout tiles throughout the lobby. This advanced high-performance cement grout offers the industry’s first dispersible dry pigment solution and offered David Allen Company increased productivity and time savings on the jobsite, thanks to a faster time-to-grout, with foot traffic permitted in as little as three hours.

All of the products used received UL GREENGUARD Gold Certifications for low chemical emissions for sustainable building. Additionally, each of the LATICRETE products used has a Health Product Declaration (HPD), with the exception of LATAPOXY 300, which has Product-Specific (Type III), and Environmental Product Declarations (EPD), which help manufacturers create – and helps buyers identify – tile and flooring installation materials’ impact on the environment.

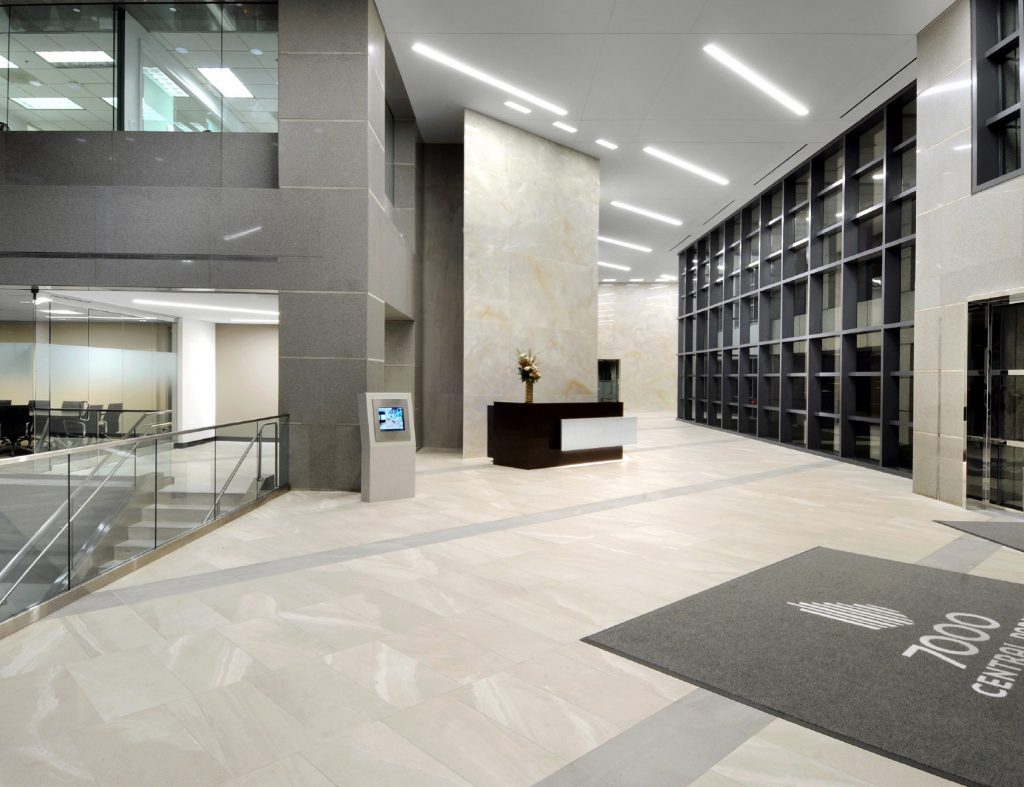

Architect tvsdesign led the way on the front lobby design, which included 2,000 sq. ft. of large-format gauged porcelain panels.

Architect tvsdesign led the way on the front lobby design, which included 2,000 sq. ft. of large-format gauged porcelain panels.

Outcome

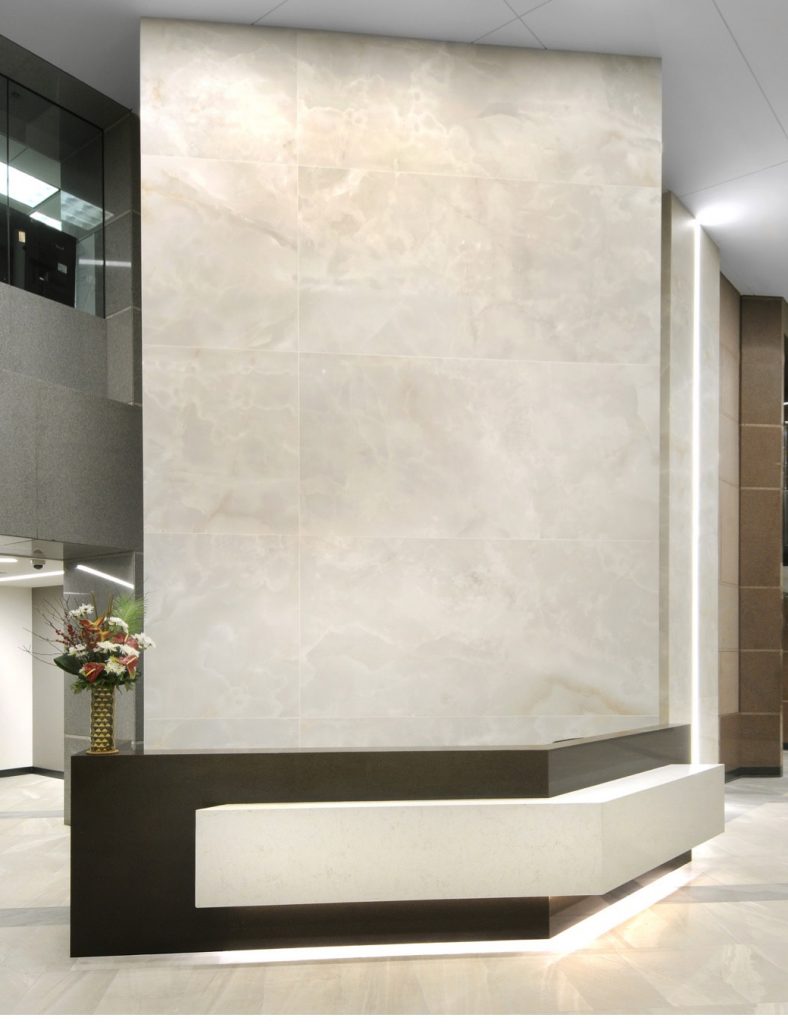

Close-up of the completed 7000 Central Park office tower lobby installations.

Close-up of the completed lobby installations.

“Just as expected, the LATICRETE products selected for the 7000 Central Park lobby renovation worked like a charm,” added Knight. “Adam Marks, the local LATICRETE representative, was with us every step of the way. At any given time, we were able to meet with Adam onsite, resulting in yet another job well done for both our company and LATICRETE.”

7000 Central Park was recognized as Georgia’s 2018 Outstanding Building of the Year.

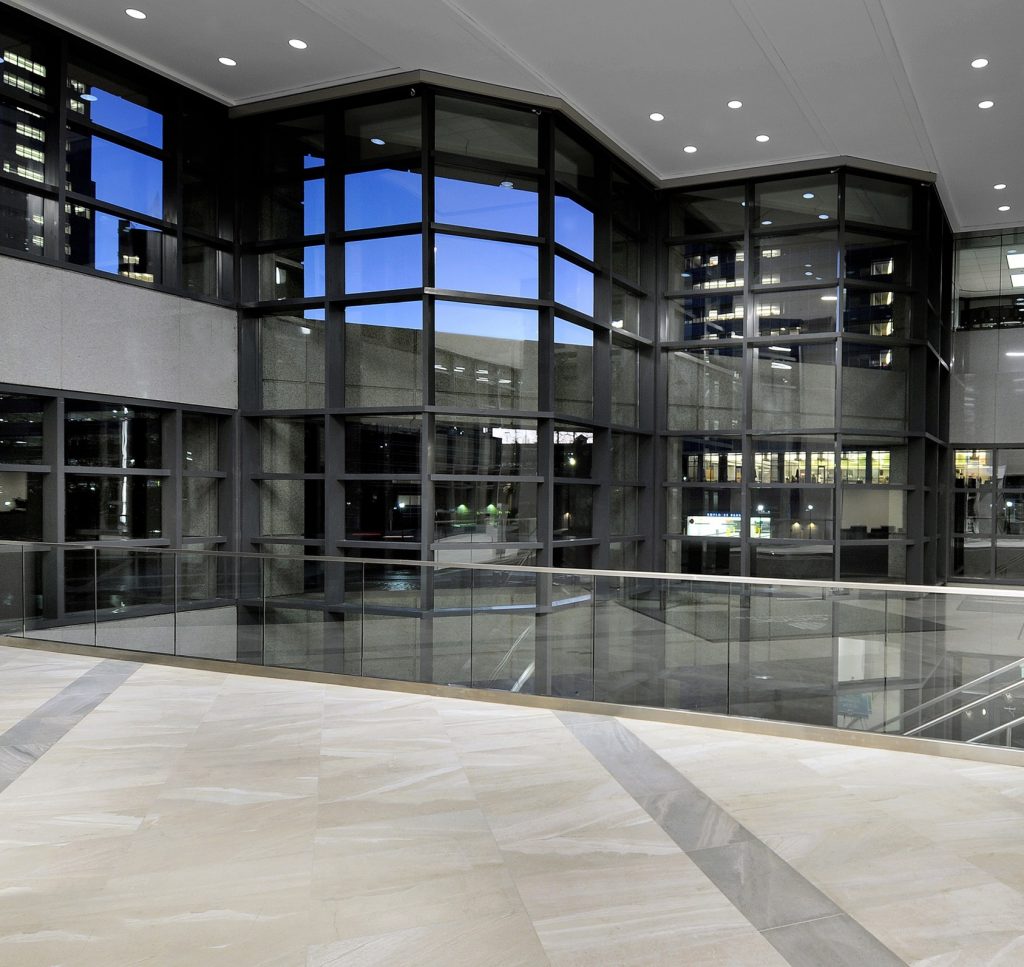

The floors utilized 4-XLT, a multi-use, polymer-fortified adhesive mortar.

The floors utilized 4-XLT, a multi-use, polymer-fortified adhesive mortar. 4-XLT boasts a smooth and creamy consistency, making tile installation applications of this product faster and easier.
